Technical Parameter

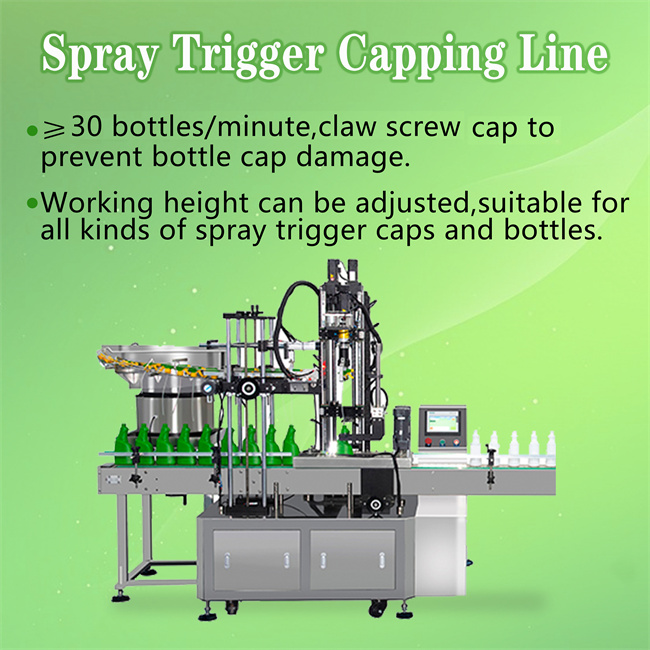

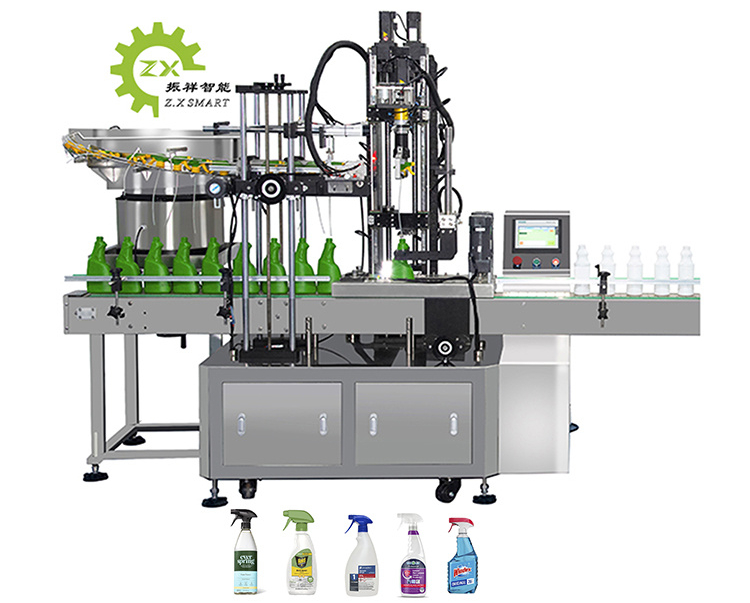

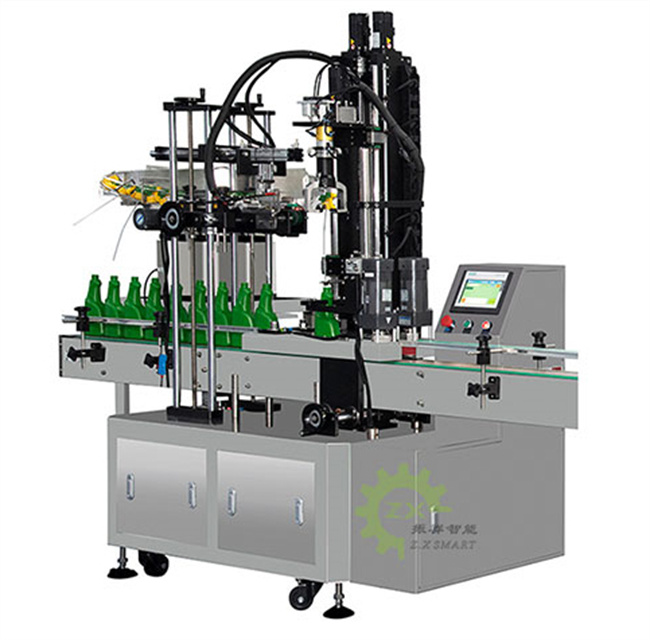

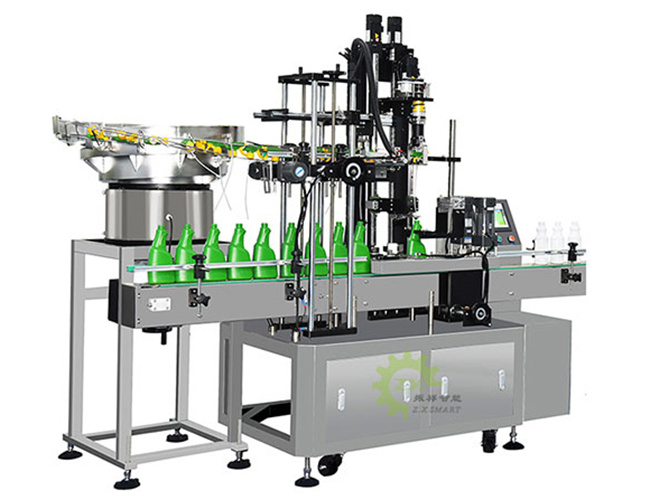

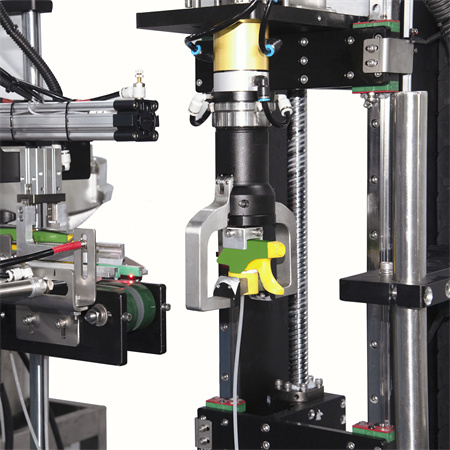

Spray trigger pneumatic screw capping machine
1. Bottle feeding method: manual bottle placement ( or bottle feeding turntable )

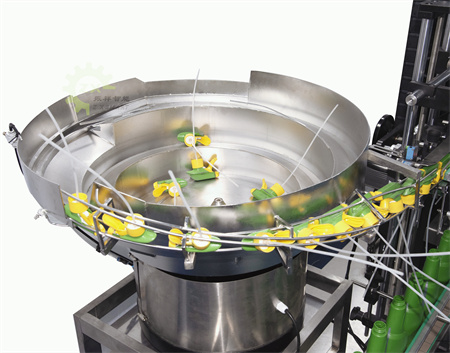

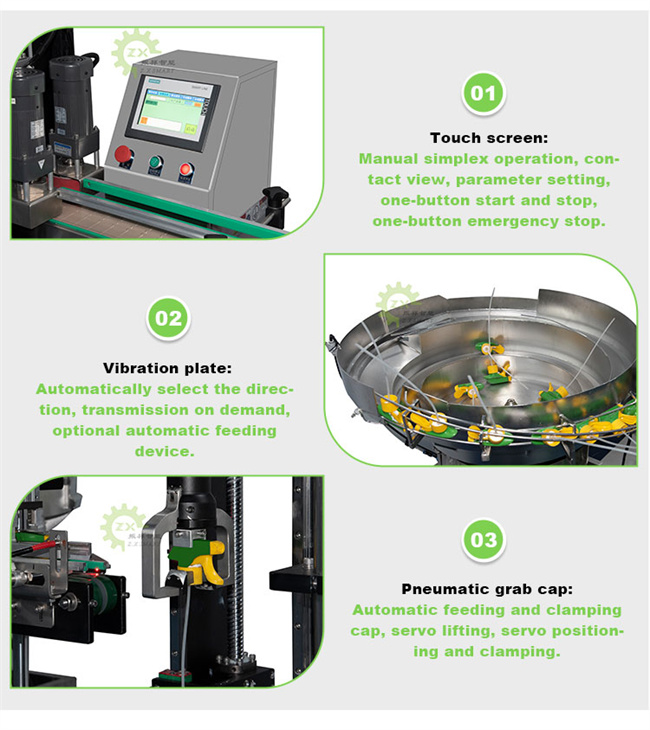

2. Capping method: vibrating disc capping (the vibrating disc needs to be replaced for different bottles) and feeding by elevator
3. Cap feeding mode: pneumatic clamp to take and place the cap
4. Capping form: servo grasping (capping head needs to be replaced for different samples)
5. Capping speed: 20 bottles / min
6. Material: the frame is made of 304# stainless steel
7. Program control: PLC + touch screen
8. Air pressure: 0.6-0.8mpa
9. Conveyor belt: 82mm wide POM chain belt, 800mm ± 25mm above the ground
Main configuration
1. Pneumatic components: Taiwan brand AIRTAC
2. Program controller: German brand Siemens
3. Man machine interface: German brand Siemens 7-inch color touch screen
4. Photoelectric sensor: German brand Leuze
5. Relay and air switch: French brand Schneider
6. Motor frequency converter: German brand Siemens
7. Capping motor: domestic brand motor
8. Materials of exposed parts: stainless steel, anodized aluminum alloy, electroplated 45 steel and plastic parts.
